The global market size for ceramic heating elements is projected to reach $2.46 billion by 2027, growing at a CAGR of 6.2%. Made primarily from ceramic materials like aluminum nitride and aluminum oxide, these elements operate reliably within an extreme temperature range of -50°C to 1000°C.
Compared to traditional metal heaters, ceramic heating elements boast 20-30% higher thermal efficiency and a lifespan extended by 3-5 times, rapidly becoming the preferred solution for high-end heating applications.
The core of ceramic heating elements lies in the perfect integration of the Joule heating principle and the unique properties of ceramic materials. When an electric current passes through a resistive circuit embedded in the ceramic substrate, heat is generated. The ceramic acts as a unique medium, effectively conducting heat while providing excellent electrical insulation.
These elements are primarily divided into direct heating and indirect heating structures. Direct heating types incorporate the resistive material directly into the ceramic body, enabling extremely rapid heating, often reaching operating temperature within seconds. Indirect heating types transfer heat via a separate heating wire, allowing for more precise and stable temperature control.
Heat transfer efficiency depends on the material's thermal conductivity. Aluminum nitride ceramic offers a thermal conductivity of 170-200 W/(m·K), while aluminum oxide ranges between 20-30 W/(m·K).
Temperature control is a key advantage. PTC-type elements possess a unique self-regulating characteristic where resistance increases dramatically upon reaching a specific Curie temperature, causing current to drop and temperature to automatically stabilize.
PTC Ceramic Heating Elements are among the most widely used. They employ barium titanate-based semiconductor ceramics with a significant Positive Temperature Coefficient. Below the Curie point, resistance is low for efficient heating; above it, resistance spikes sharply, enabling automatic temperature regulation and overheat protection.
Commonly used in warm air heaters, car seat warmers, and appliance auxiliary heating, PTC elements typically operate between 50-300°C and offer high safety.
Thick Film Ceramic Heating Elements represent advanced manufacturing. Using screen-printing, specially formulated resistive paste is precisely applied to a ceramic substrate. Despite the heating layer being only 20-50 microns thick, it achieves very high power density.
These elements feature extremely fast thermal response and uniform temperature distribution. They are widely used in laboratory equipment, medical instruments, and aerospace, achieving precise control within ±0.5°C.
Traditional Open-Type Ceramic Heating Elements typically use heating wires or ribbons wound on a ceramic frame. They have a relatively simple structure and lower cost but slower thermal response and less uniform heating.
Found in space heaters, industrial pre-heaters, and some lower-end appliances, their power range is broad, from a few watts to tens of kilowatts.

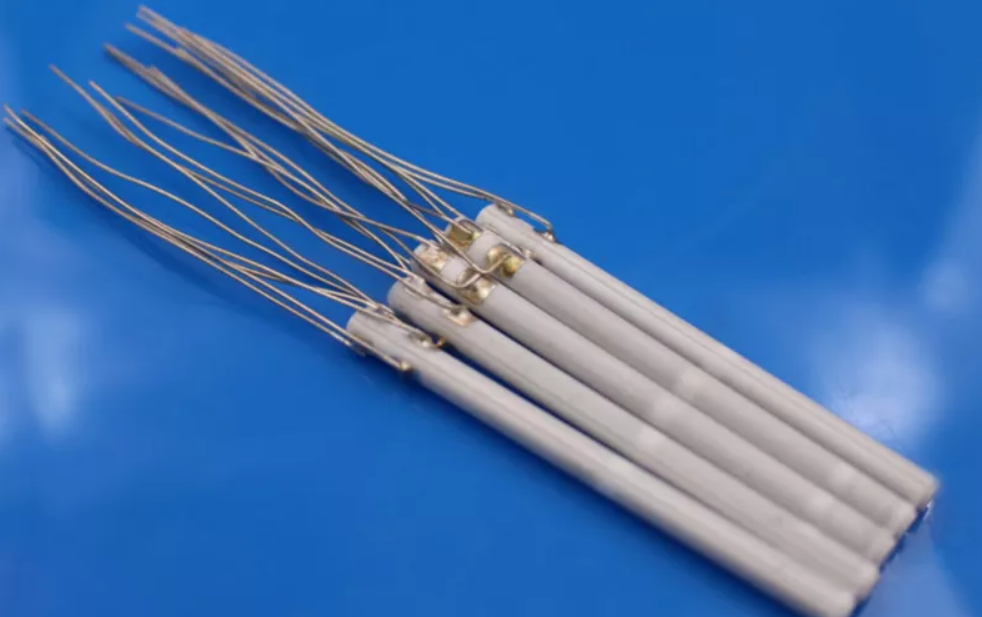

MCH (Metal Ceramic Heater) Elements completely seal the metal resistor inside the ceramic, achieving zero contact between the heating body and air. This structure prevents oxidation, extends lifespan to over 3 times that of traditional elements, and allows for very high power density.
The performance advantages stem from unique material properties. Uniform heating capability is a primary feature. The isotropic thermal conduction of ceramics ensures even heat distribution across the entire surface, with temperature differentials controllable within ±5°C.
Regarding thermal response speed, ceramic elements are 50-70% faster than traditional metal heaters. For example, a PTC ceramic heater may reach 200°C from room temperature in 30-60 seconds, whereas a metal heater might take 2-3 minutes.
For electrical insulation, high-quality aluminum oxide ceramic can achieve an insulation resistance exceeding 10¹³ Ω·cm, maintaining stable insulation even in high-temperature, high-humidity environments. This allows ceramic elements to directly contact heated objects without electrical leakage concerns.
Designed for longevity, they can withstand over 100,000 thermal cycles in testing, with a continuous operational life exceeding 10,000 hours under rated conditions, far surpassing the 3,000-5,000 hours of metal heaters.
Industrial manufacturing is a major application area. In plastics processing, ceramic heating bands and plates provide precise temperature control for uniform material melting. In semiconductor fabrication, high-purity ceramic heaters offer contamination-free thermal environments for wafer processing.
3D printer heated beds widely use ceramic elements, with thermal uniformity errors below ±2°C, significantly improving print success rates.

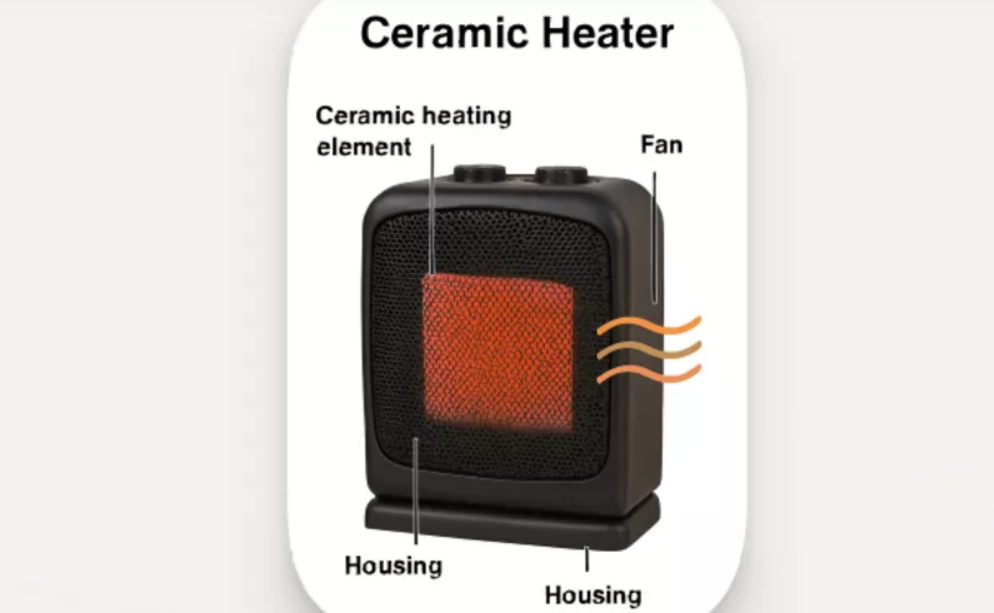

In the home appliance sector, ceramic heating technology brings revolutionary changes. Instant hot water dispensers using PTC elements can output hot water within 1-3 seconds, consuming over 30% less energy than traditional storage heaters. High-end electric heaters with ceramic heating bodies provide rapid warmth with safe surface temperatures.
Induction cooktops using multi-layer ceramic heating plates achieve thermal efficiency of 75-80%, surpassing traditional coil stoves (60%) and approaching induction cooktops (85%), while offering more even heating and compatibility with all cookware.
Medical and laboratory equipment demand extremely high temperature control. Blood analyzers use ceramic elements to maintain reagent temperature with stability of ±0.1°C. PCR instruments use ceramic heating blocks for rapid, precise thermal cycling, ensuring efficient DNA amplification.
In the automotive industry, applications are growing. Electric vehicle battery thermal management systems use ceramic heating plates to preheat batteries, ensuring performance in cold climates. Seat warmers using PTC elements provide even, safe heating.
Aerospace requires reliable heating solutions for extreme environments. Satellite components use specialized ceramic heaters to maintain equipment temperature, operating stably in the -100°C to +200°C conditions of space. Aircraft fuel line heaters employ explosion-proof ceramic elements to ensure fuel flow in cold temperatures.
